We deliver precise fluoroplastic solutions for your applications. Take a look at the fluoropolymer products we’ve produced over the years.

Filter the image gallery by topic:

All Images  /  Special Tubing  /  Thermoforming Fluoroplastics  /  Welding Fluoroplastics  /  Encapsulating Components

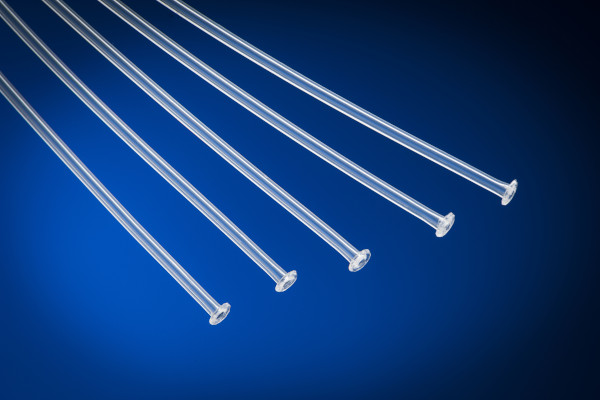

Flanged Micro Bore FEP Tube

Flanged Micro Bore FEP Tube

FEP tube with a 0.4mm ID that has been flanged to a very specific diameter.

Find out more about Tipping & Flanging Fluoroplastics.

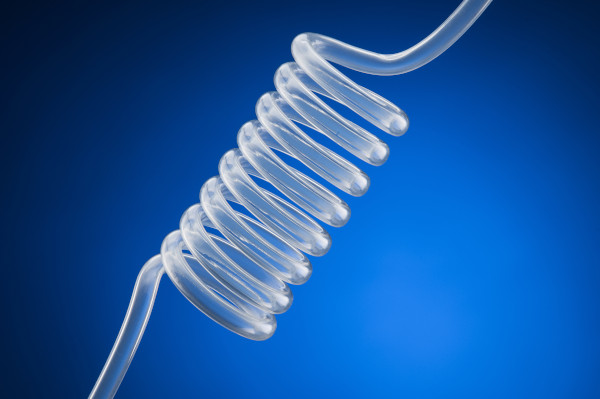

FEP Retractable Coil

FEP Retractable Coil

FEP tube formed into a retractable coil.  This is used within an auto-sampler.

Find out more about Retractable Coils.

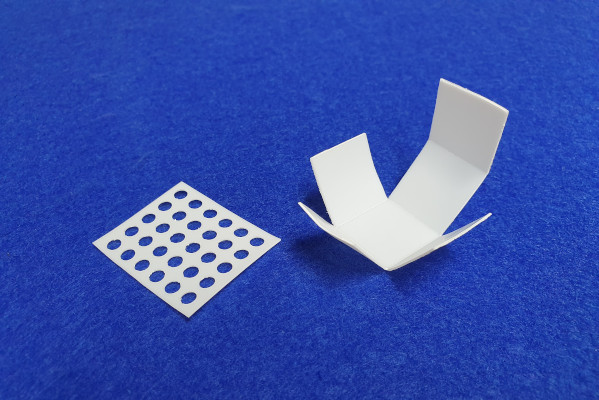

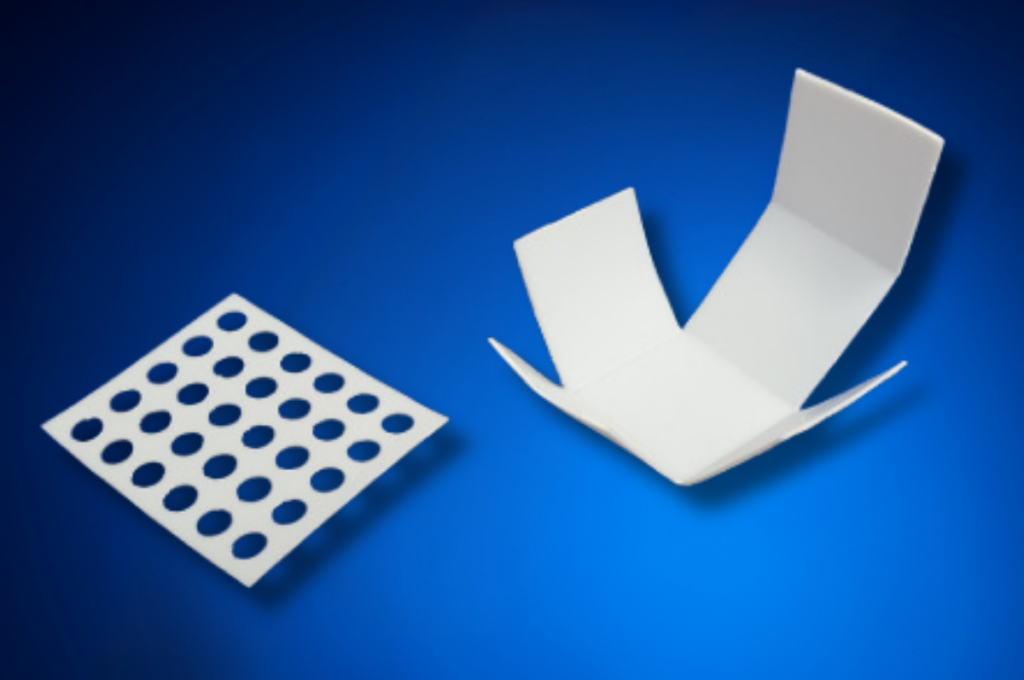

Laser Cut PTFE Sheet

Laser Cut PTFE Sheet

Thick PTFE sheet cut using laser technology. The box was punched and scored to create the 3D profile.

Find out more about Thermoforming & Manipulation of Fluoroplastics.

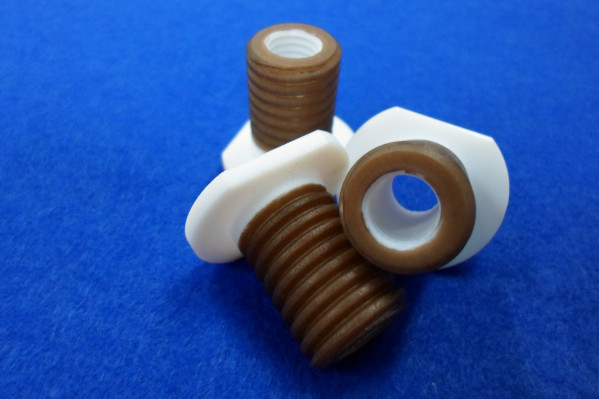

PTFE Components Chemically Etched

PTFE Components Chemically Etched

Free issue PTFE machined parts that have been chemically etched to enable bonding.  Only the area to be bonded has been chemically etched.

Find out more about Etching Fluoroplastics.

FEP Heat Shrinkable Probe Covers

FEP Heat Shrinkable Probe Covers

Selection of covers made from FEP heat shrink to encapsulate level detection probes.

Find out more about FEP Probe Covers.

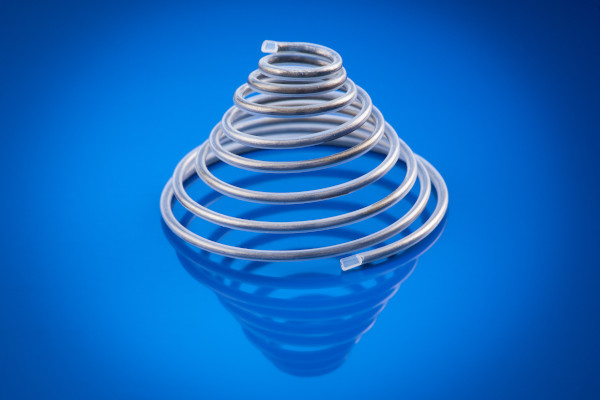

Conical Springs Encapsulated with PTFE

Conical Springs Encapsulated with PTFE

Free issue conical springs encapsulated with thick PTFE, sealed at each end and spark tested to ensure chemical resistance.

Find out more about Encapsulating with Fluoroplastics.

Tedlar® Gas Sample Bags

Tedlar® Gas Sample Bags

Sample bag made from Tedlar® Film and used for gas, odour and automotive emission sampling for VOC’s.

Find out more about Tedlar® Gas Sample Bags.

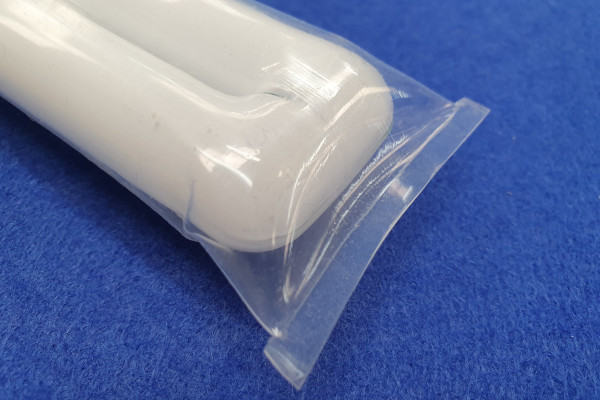

FEP Coated Boot

FEP Coated Boot

Shatterproof lamp coated in FEP tube with a welded seal and a heat shrinkable end section to ensure the seal over the end cap. All our coated lamps are IEC 61549 compliant for use in glass free environments.

Find out more about Shatterproof Lamps.

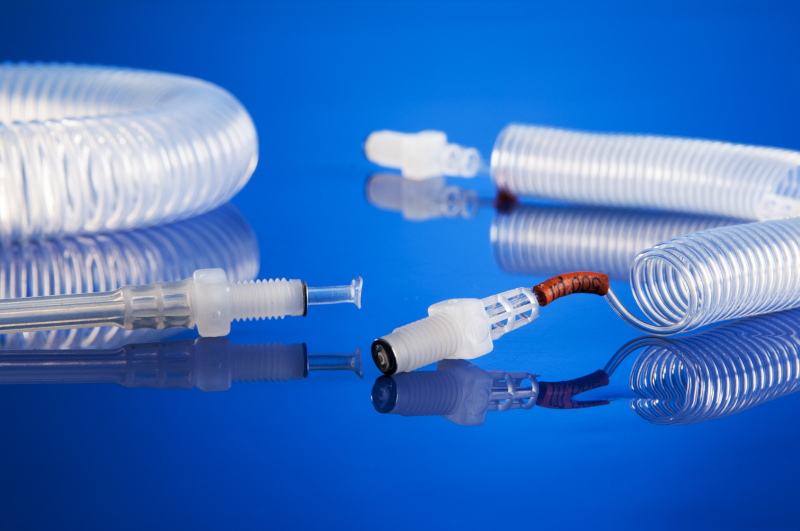

FEP Retractable Coils

FEP Retractable Coils

Retractable coils from 0.8mm ID x 1.6mm OD FEP tube. The ends have been flanged to a controlled diameter and free issue fittings and markers have been applied during the coiling process.

Find out more about Retractable Coils.

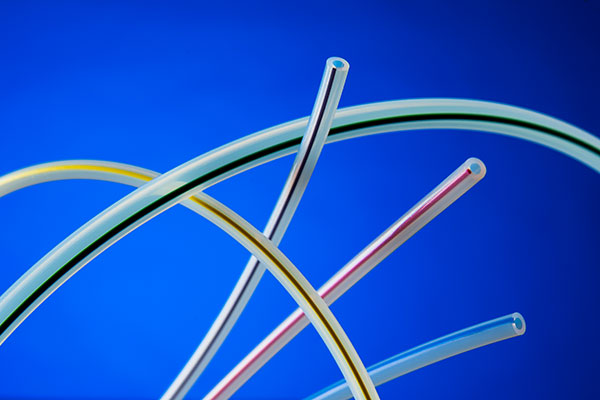

PTFE Inkjet Tubes

PTFE Inkjet Tubes

PTFE inkjet tube is supplied as a natural tube with a coloured identification stripe along the length. The tubes are usually assembled into an umbilical, together with the relevant electronics, and are either sleeved with a heat shrink outer or more commonly an over extrusion.

Find out more about PTFE Tubes.

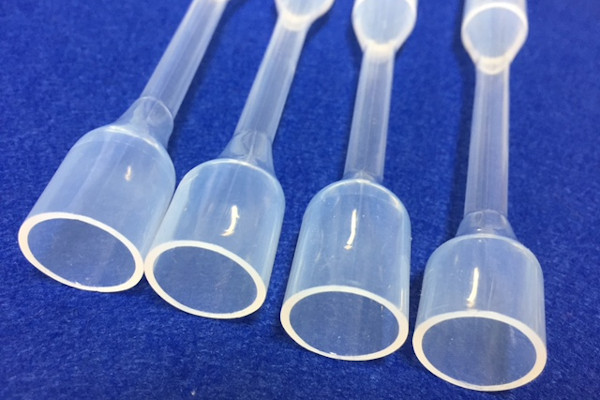

Drawn Down FEP Tubing

Drawn Down FEP Tubing

19mm ID FEP tube with a 1.5mm wall was reduced in diameter to 8mm to restrict the flow in a specific area. It then needed to taper back up to the original ID. For use in a fluid handling application.

Find out more about Fluoroplastics Tubing Assemblies.

FEP Tapered Tips

FEP Tapered Tips

FEP Tube 0.6mm ID x 0.2mm wall reformed with a reduced tip to 0.25mm ID. FEP tapered tips are delivery tips for a medical application and small batch sizes were required.

Find out more about Thermoforming & Manipulation of Fluoroplastics.

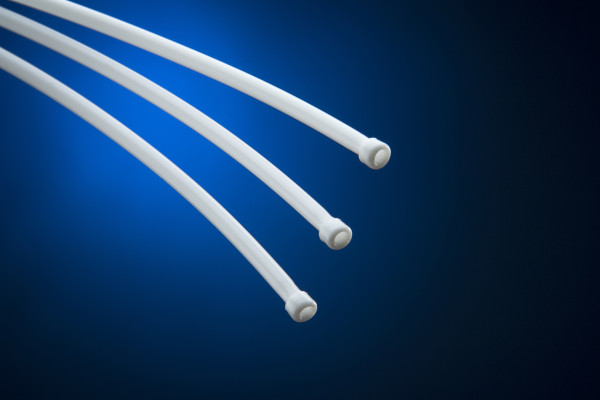

PTFE AWG Series Sleeving with Collar Section

PTFE AWG Series Sleeving with Collar Section

PTFE sleeve AWG 15L (TW15) pigmented white and supplied with a moulded collar section at one end with a nominal OD of 3mm.

Find out more about Fluoroplastic Tubing Assemblies.

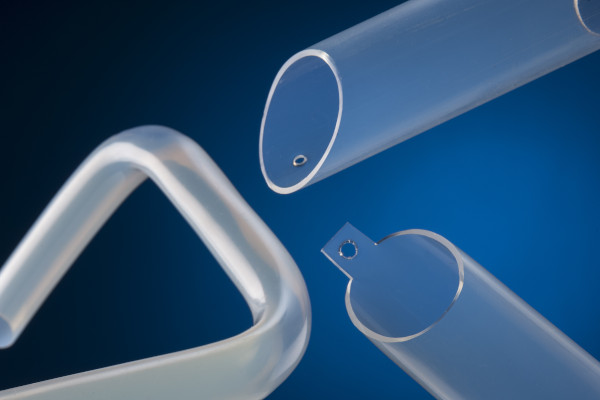

FEP & PTFE Pre-formed Tubes

FEP & PTFE Pre-formed Tubes

FEP and PTFE tubes have been preformed to our customers' requirements, using thermoforming techniques.

Find out more about Fluoroplastic Tubing Assemblies.

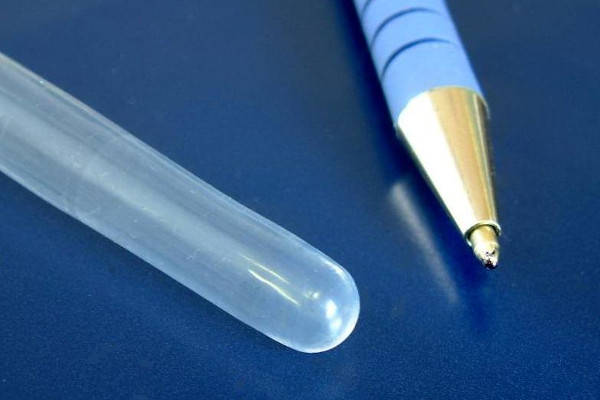

FEP Heat Shrinkable Closed End Tube

FEP Heat Shrinkable Closed End Tube

Medical grade closed end heat shrinkable FEP tube. The thickness of the tip was critical as this was used with microwave technology to treat various forms of cancer.

Find out more about Welding & Sealing Fluoroplastics.

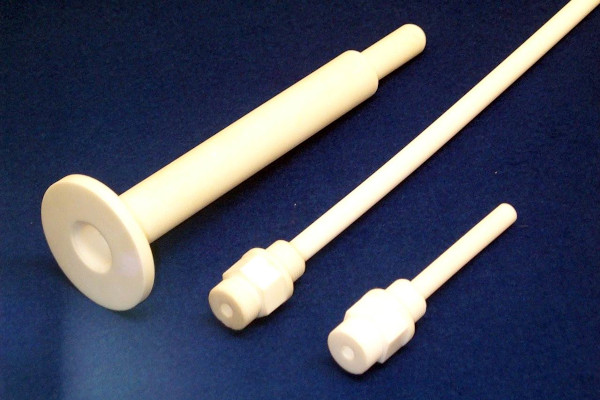

Plugged PTFE Probe Covers

Plugged PTFE Probe Covers

Plugged PTFE prove covers made from PTFE tubing and terminated with a welded plug. The probe covers are manufactured from moulded, machined or welded PTFE without any metal internal support.

Find out more about Plugged PTFE Probe Covers.

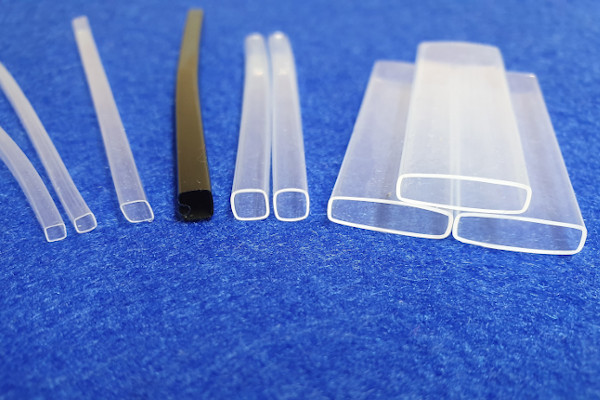

Rectangular Profile FEP Tubes

Rectangular Profile FEP Tubes

Rectangular profile FEP tubes made using a re-forming technique.

Find out more about Thermoforming & Manipulation Fluoroplastics.

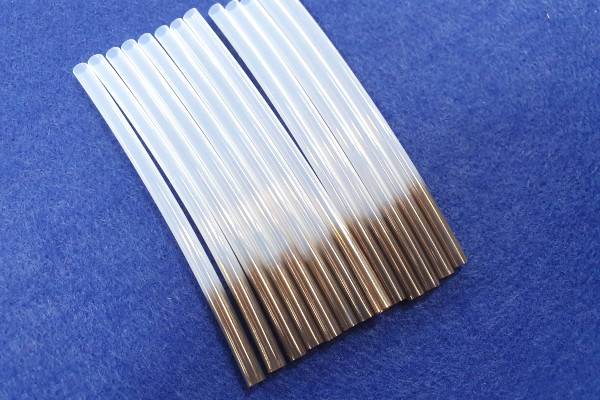

PTFE Tubes with a Chemical Dip Etch

PTFE Tubes with a Chemical Dip Etch

PTFE tube has been cut to a specific length and then dip etched on the ID & OD so that they can be bonded into place.

Find out more about Etching Fluoroplastics.

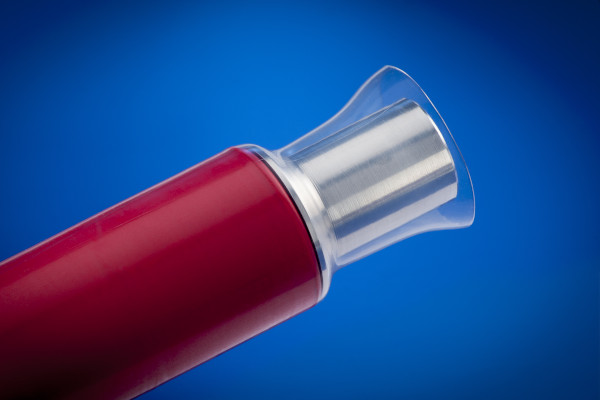

FEP Roll Cover

FEP Roll Cover

FEP heat shrinkable roll covers applied to metal rollers using a simple hot air gun.

Find out more about Roll Covers.

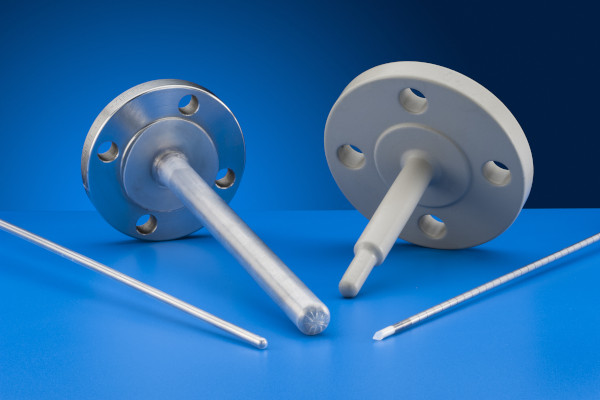

FEP Coated Thermowells

FEP Coated Thermowells

Thermowells coated in FEP shrinkable tubing and a PTFE spray coating for use in hostile conditions.

Find out more about Thermowell & Sensor Probe Coating Service.

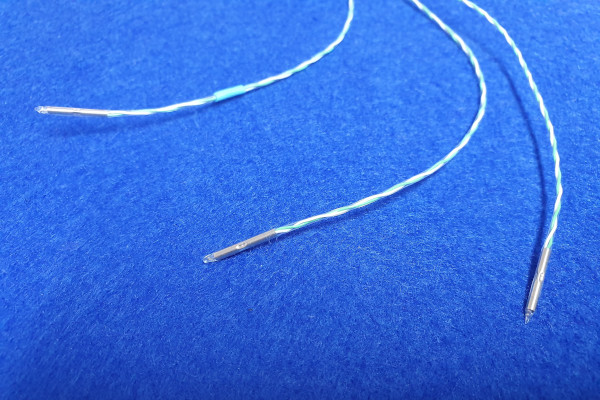

FEP Encapsulated Thermocouple Assembly

FEP Encapsulated Thermocouple Assembly

Type K thermocouple encapsulated along the full length with FEP heat shrink and sealed at one end to prevent chemical ingress.

Find out more about Thermowell & Sensor Probe Coating Service.

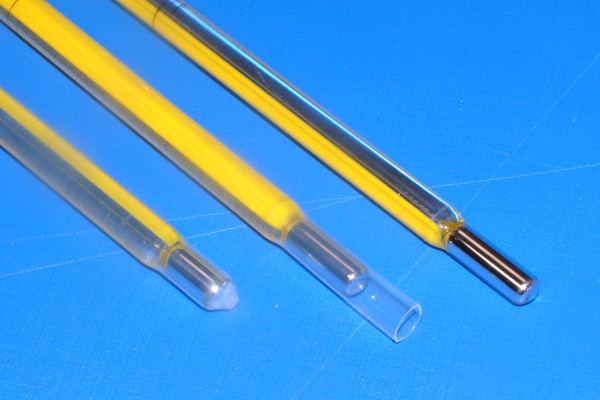

FEP Encapsulated Thermometers

FEP Encapsulated Thermometers

Free issue thermometers encapsulated with FEP heat shrink and sealed at each end so that they are shatterproof for glass free environments.

Find out more about Encapsulating with Fluoroplastics.

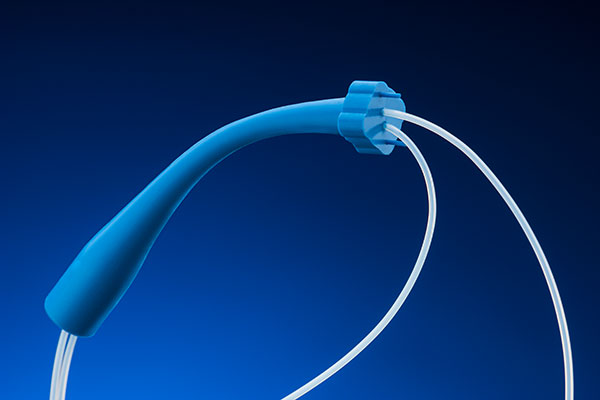

Flexible Silicone & PTFE Connector

Flexible Silicone & PTFE Connector

Flexible connectors are used in chromatography instruments for separation, purification and concentration of target compounds.  The thin walled PTFE sleeving is moulded within the silicone section.

Find out more about Medical Fluoroplastics.

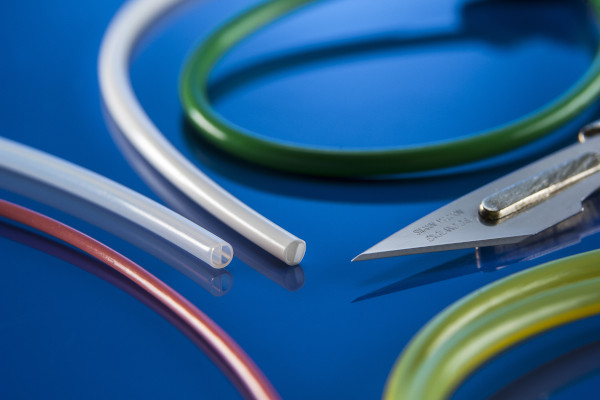

Multi-lumen PTFE Tubes

Multi-lumen PTFE Tubes

Multi-lumen PTFE tube can be supplied with multiple internal diameters, and allows a different medium, such as fluids or guide wires, to pass along each ID. Predominantly  used in medical devices.

Find out more about Medical Fluoroplastics.

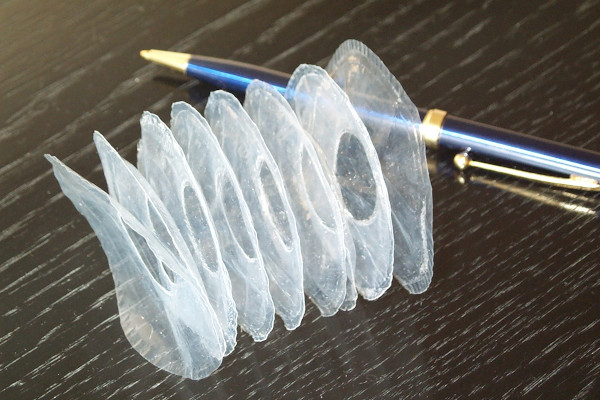

Light Weight FEP Bellows

Light Weight FEP Bellows

Bellows welded from vacuum formed sections of 50-micron FEP film.

Find out more about Welding & Sealing Fluoroplastics.

Vacuum Formed FEP Film

Vacuum Formed FEP Film

50-micron FEP film vacuum formed and welded with kapton reinforcement to make an insulating cover for a pacemaker application.

Find out more about Welding & Sealing Fluoroplastics.

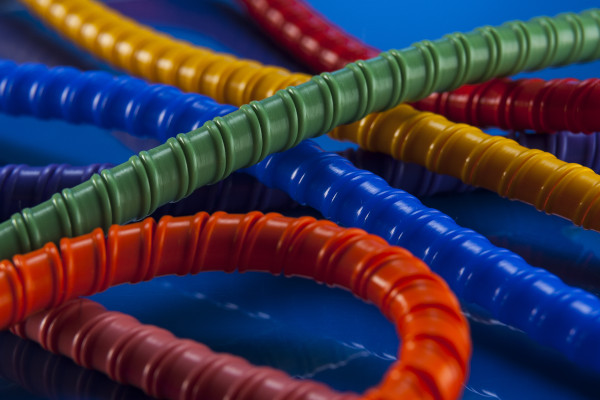

PTFE Spiral Binding

PTFE Spiral Binding

Extruded spiral binding in PTFE used for harness applications.

Find out more about Fluoroplastic Tubing.

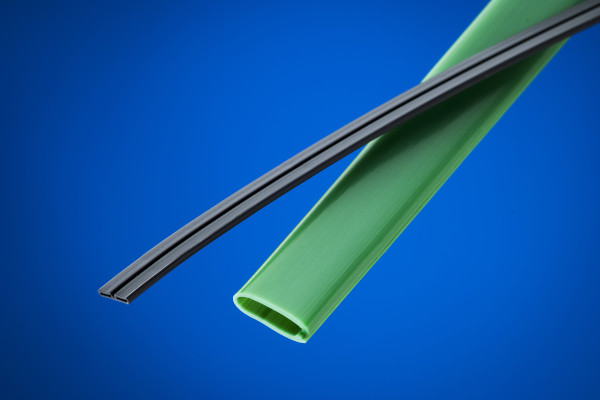

PTFE Extruded Tubing Profile

PTFE Extruded Tubing Profile

Extruded tubing profiles were made to our customer’s design, they were to push over a profile and into a channel offering a chemically inert and non-stick seal.

Find out more about PTFE Tubing.

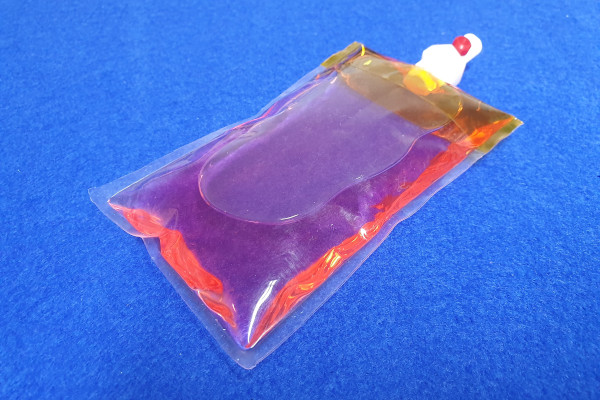

FEP Gas Sample Bag

FEP Gas Sample Bag

Sample bag made from FEP film and used for odour sampling and applications where a very low ppm are involved.

Find out more about FEP Gas Sample Bags.

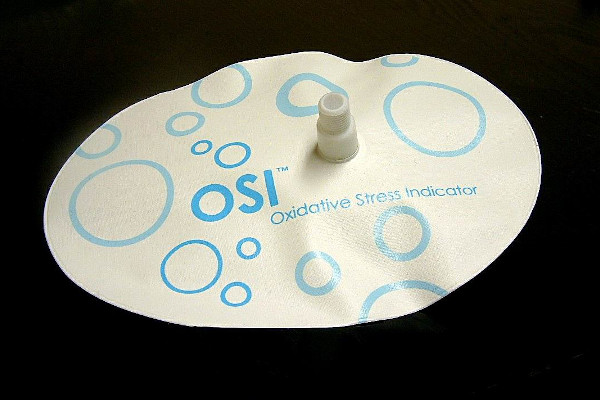

Screen Printed PVC Outer Bag

Screen Printed PVC Outer Bag

Human breath bag enclosed within a specially designed and screen-printed PVC outer.

Find out more about PVC & PU Gas Sample Bags.

Cross Section of an FEP Probe Cover

Cross Section of an FEP Probe Cover

We can offer closed end FEP tubes and heat shrinkable FEP tubes for medical and chemical applications. We can tightly control the thickness of the tip.

Find out more about FEP Tubes.
